Forks and front end geometry

I have recently been given a 2001 Lemond Poprad (cyclocross) frame to mess with (thanks Thom).  I'll slowly put this together as a winter project.

My first order of business is to get a fork for this frame.  I figured any fork would do, but I did a little reading anyway.  I was very wrong - any fork will not do.  Let's get a little geeky for a moment to explain why:

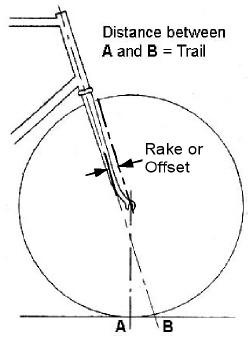

TrailRake Trail is the horizontal measurement from the centerline of your front hub to the centerline of the contact patch your tire makes with the ground.  Forget fork rake, wheelbase, etc.  Bike handling characteristics are primarily determined by trail.  For real.

Ever ghost ride a bike when you were a kid?  That's when you kind of jump off your bike and send it coasting down the road on it's own.  A bike with lots of trail will tend to go a very long way before falling over.  A bike with less trail will fall over sooner.  Basically, the less trail, the less effort is required to steer the bike.

Obviously, there's a happy medium.  Quick steering is desirable, but not too quick.  When you're bombing down a hill at high speed, you want the bike to keep going in a straight line.

Notice the front axle centerline (e.g. point A) is located behind the center of the tire contact patch where point 'B' hits the road.  That means as you increase your fork rake, you'll decrease your trail.

There are a few factors in determining trail:

  1. Head tube angle (from horizontal)
  2. Fork offset (i.e. rake)
  3. Length of fork (from crown to dropout)
  4. Outside wheel diameter (note tire size matters)

The formula for calculating trail is pretty easy:

Trail = (r * cos(a) - R) / sin(a)

where r is the outside radius of your wheel (probably about 350mm for cyclocross, 340mm for road), a is the head tube angle from horizontal, and R is the fork rake.

Fork length makes a difference.  When you get a shorter fork, the effective head tube angle will increase.  You could probably adjust the 'r' value to see how much it would affect trail.

I calculated the trail for a bunch of cyclocross bikes.  The target seems to be between about 6 and 7 cm.  For this Poprad project, I'll go for about 6, maybe even a hair below.

Related Blog Entries

Comments (Comment Moderation is enabled. Your comment will not appear until approved.)
There's another factor I didn't know anything about until I ordered my Fort: fork length. CX forks used to be longer than they are now, so the sweet Empella fork I was going to order wouldn't work because the new Fort frames were made with the more current shorter length forks (Ritchey, Easton, etc.) in mind. Fortunately the new AlphaQ CX20 also fit the bill.
# Posted By Steven | 12/28/07 12:33 PM
Yup, I mentioned that. I noticed the poprad came with a 405mm fork, while the new ones these days seem to be as short as 390mm.

I figure modifying the 'r' figure in the formula will give you a close enough estimate in the change of trail, but what's really happening is you're changing (increasing) the steer tube angle with horizontal.
# Posted By erikv | 12/28/07 12:38 PM
# Posted By DavidS | 12/28/07 9:17 PM
# Posted By john | 1/2/08 11:09 AM
I never liked how that Fuji cornered. It was incredibly slow and sloppy for me.

As you point out, those terms -- stable, twitchy, etc. -- are all based on the perception of the rider.

However, no matter how the bike feels, you've still got the physics as a starting point. I don't plan on using the ghost ride stability test for my rigs, but it's nice to know what's going on.
# Posted By erikv | 1/2/08 11:55 AM
This is EXTREMELY nerdy of you.
I am infinitely impressed.
# Posted By Heidi Swift | 1/7/08 8:50 PM
I *LOVE* math. I cheer when my 8 year old brings home math homework. She looks at me funny. You made my night.
# Posted By erikv | 1/7/08 8:53 PM
# Posted By John Bailey | 1/11/08 8:21 PM
